Advantages:

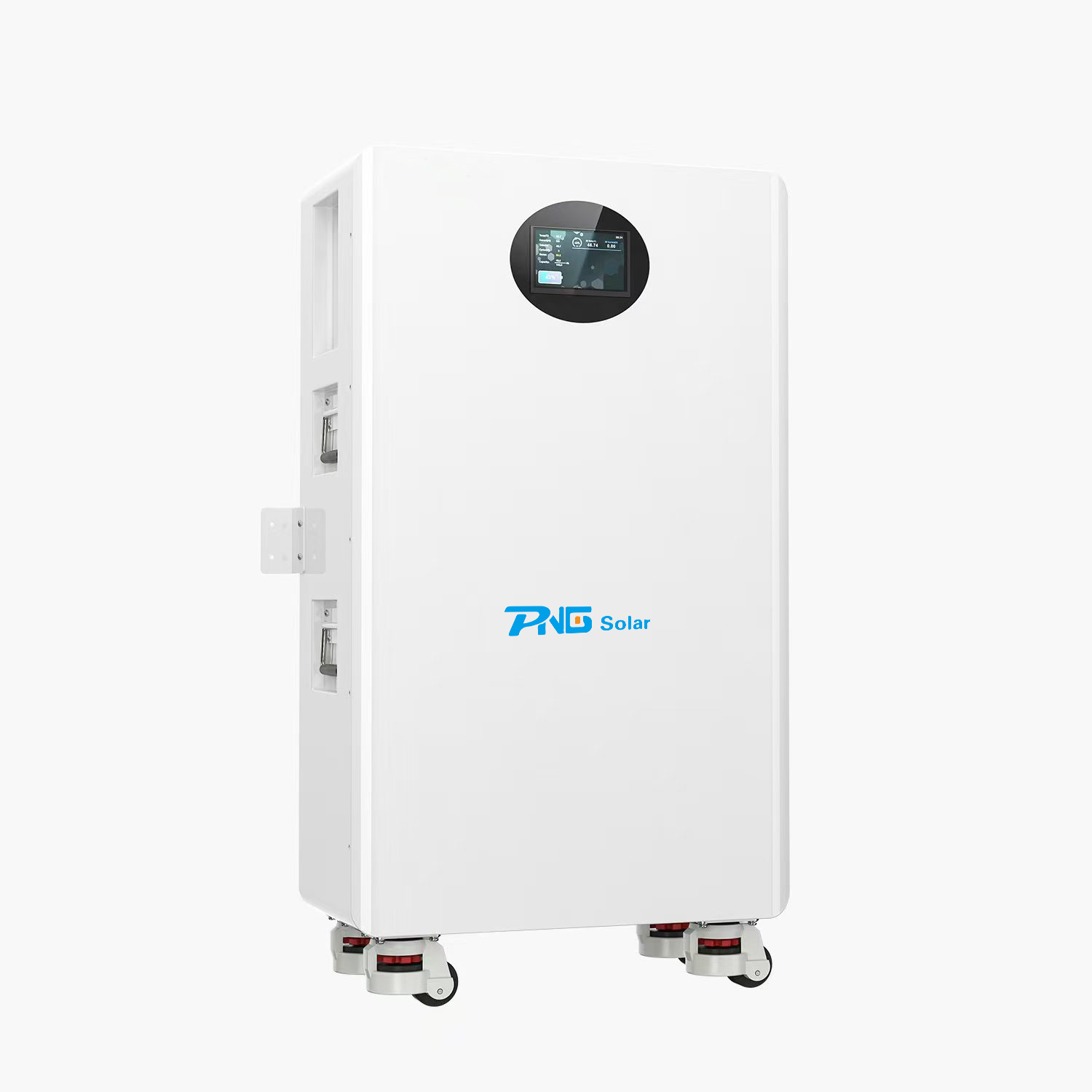

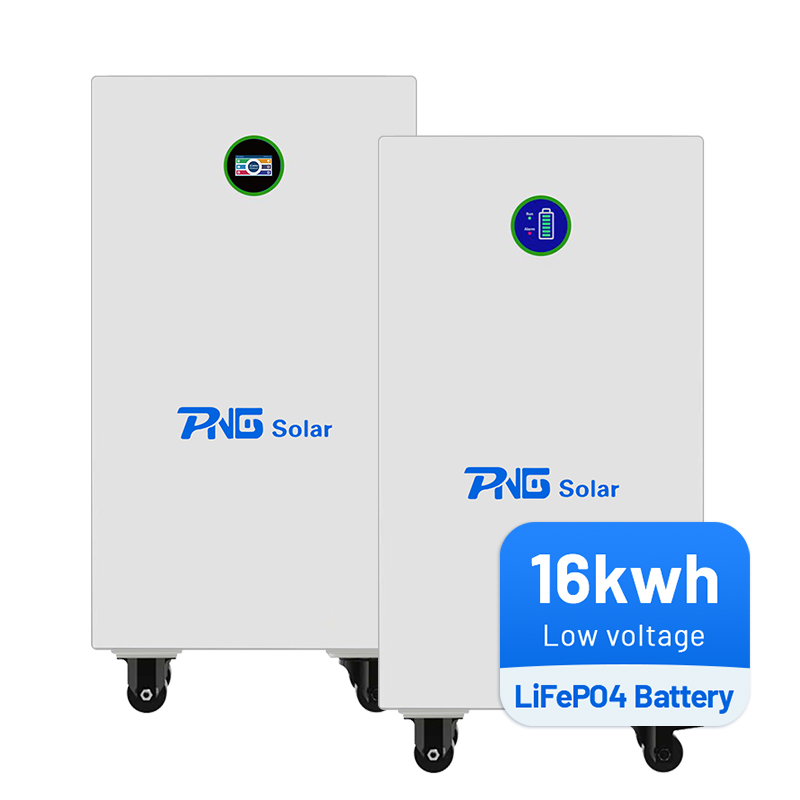

High performance traction* LiFePO4 100Ah lithium battery
Safest lithium (LiFePO4)technology
Long service life
High discharge current
Light weight
Low automatic discharge
| Model | PNG-E51314-LV |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Nominal Capacity | 16.076kWh |
| Output Voltage Range | 43.2-58.4V |
| Charge Voltage Range | 51.2-58.4V |
| Discharge Cut-off Voltage | 43.2V |
| Max.Charge/Discharge Current | 140/150A |
| Recommend Charge/ Discharge Current | 63A |
| Scalability | Up to 15pcs connected in parallel |
| Depth of Discharge (DOD) | 80%/25C/0.5C，SOC≥80% |
| Display Type | LCD Screen |
| Protection Level | IP54(Indoor) |
| Working Temperature Range | Charge:0℃~+55C.Discharge:-20C~+55℃ |
| Storage Temperature Range | -10℃~+30℃ |
| Humidity | 5%~95% RH |
| Cycle Life | ≥6000cycles |
| Design Life | 10 years |
| Protection | Built-in smart BMS,Breaker,Fuse |
| Communication Port | CAN/RS485 |
| Warranty | 5years |
| Installation | Wall-Mounted |
| Cooling Mode | Air-cooling |
| Dimension(L*W*H) | 479*274*890mm |
| Weight | 120kgs |
FAQ:
1: Can the product be shipped to my area?
We export to most countries/regions (Centre/ South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
2: How can I make payment?
100% T/T or maximum we can accept 30% T/T in advance and 70% T/T upon goods ready before shipment.
